Smith Machine Standard MF-SM100

Name: Smith Machine Standard MF-SM100
Brand: GymHabitat
SKU: MF-SM100
Price: 2199 USD
Availability: InStock

Smith Machines

$2,199 - $2,699

The MF-SM100 Smith Machine Standard is the foundation of our commercial Smith line. Built on a heavy-gauge 11-gauge steel frame with chrome guide rods and sealed linear bearings, it delivers friction-free bar travel rated for 1,000 lb capacity. Features include a 7-degree angled bar path for natural biomechanics, 12-position adjustable safety stops, integrated pull-up bar, and 8 weight storage pegs. Ideal for squats, bench press, shoulder press, and rows in high-traffic commercial gyms. Compatible with all standard Olympic plates and adjustable benches.

⚖ Capacity 1000

▦ Dimensions 78"L x 52"W x 92"H

⚎ Machine Weight 485

☹ Max User 350 lbs (159 kg)

Best For: Commercial Gym Hotel Fitness

Load Type: Plate Loaded

Certifications: CE, ISO 20957 Class S

Get a Quote Contact Us

Key Features

✓

Linear Bearing System

Friction-free bar travel for smooth, consistent reps - feels the same on day 1,000 as day 1

✓

Counterbalanced Olympic Bar

Reduces starting weight to approximately 15 lbs for inclusive usability across all fitness levels

✓

7-degree Angled Bar Path

Mimics natural free-weight mechanics - safer on shoulders and knees than vertical Smith machines

✓

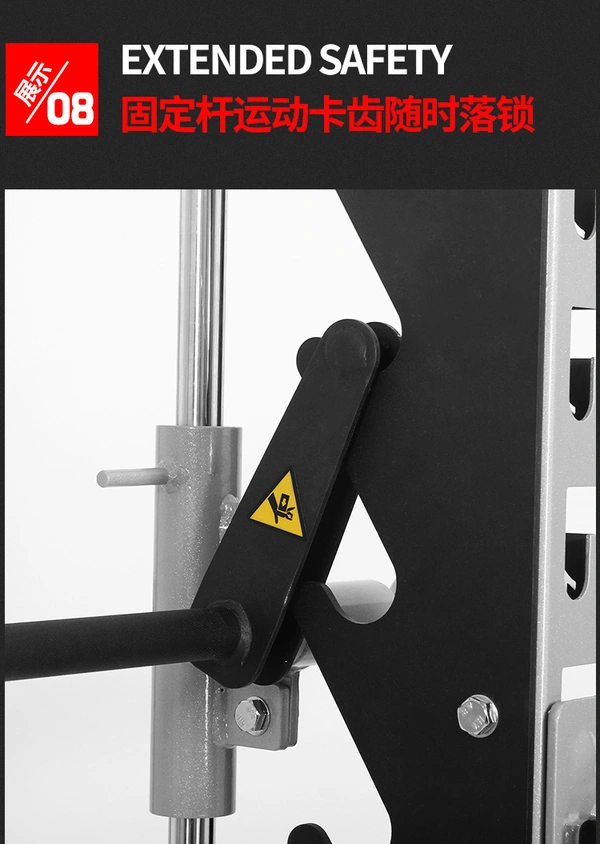

One-Hand Safety Stops

12-position adjustable catches let users train to failure without a spotter

✓

Integrated Storage

Built-in plate storage pegs and multi-grip pull-up bar maximize floor space

Technical Specifications

Construction & Materials

Frame Material	11-gauge steel, chrome guide rods, sealed bearings
Steel Gauge / Wall Thickness	11-gauge (3.0mm) structural steel tubing
Footprint (L x W x H)	78"L x 52"W x 92"H
Machine Weight	485

Performance & Capacity

Load Capacity	1000
Max User Weight	350 lbs (159 kg)

Detailed Specifications

Frame	11-gauge steel
Guide Rods	Hardened chrome, 25mm diameter
Safety Stops	12-position adjustable
Bar Path	7-degree angled
Weight Capacity	1,000 lb
Included	8 weight storage pegs, multi-grip pull-up bar
Color	Black/Red
Finish	Electrostatic powder coat, scratch-resistant

Warranty & Support

Warranty	Lifetime frame, 2 years parts
Shipping & Delivery	Freight delivery (curbside); 2-4 weeks lead time. White glove installation available.

Frequently Asked Questions

What is the weight capacity?

The MF-SM100 has a 1,000 lb max load capacity for loaded plates. The integrated Olympic bar is counterbalanced and does not count against the max load rating.

Can this be upgraded later with the lat pulldown module?

The lat pulldown module is factory-installed. For the integrated lat option, choose the MF-SM100-LAT variant. The standard model can be used alongside a separate cable machine.

What ceiling height is required?

Standard models require 8 ft (96 in) minimum ceiling height. Measure from the highest point of the bar path to your ceiling.

Available Configurations

Smith Machine Standard MF-SM100 Selected

Best for: Commercial Gym
Capacity: 1000
Price: $2,199 - $2,699

Smith Machine Full Package MF-SM100-FULL

Best for: Commercial Gym
Capacity: 1000 (Smith) / 200 (Cable Stack)
Price: $3,499 - $4,299

Smith Machine + Lat Pulldown MF-SM100-LAT

Best for: Commercial Gym
Capacity: 1000 (Smith) / 200 (Cable Stack)
Price: $2,899 - $3,499

Commercial Smith Machine MF-SM100

Best for: Commercial Gym
Capacity: 1000
Price: $2,499 – $3,299
